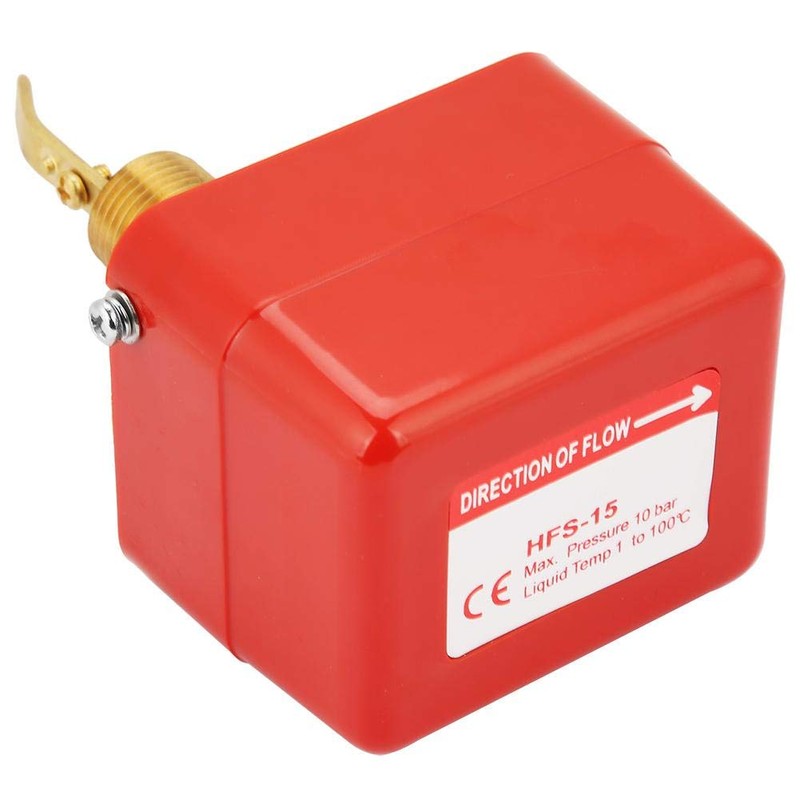

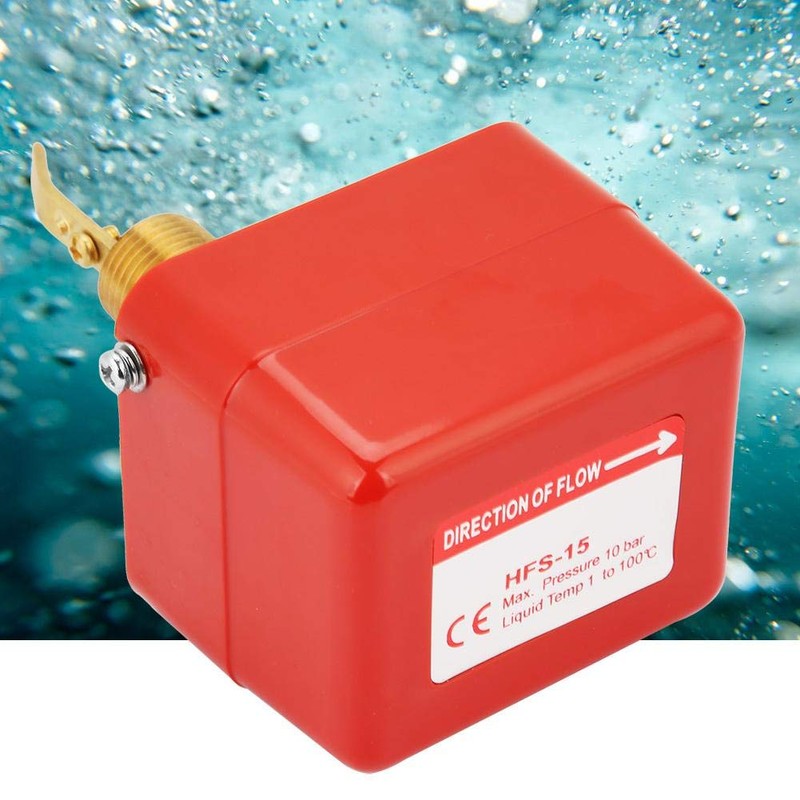

1/2 Inch Water Flow Switch HFS-15 Adjustable Thread Connection SPDT Contacts Red Water Flow Control for Water Treatment System, Default

Brand: Hilitand
  • High quality: it adopts first-class material with a strong temperature adaptability of 0 ~ 120 and can withstand a high pressure of 1.0 MPa.
  • Measuring liquid: the product is used to measure the dynamic state of the liquid flowing through the pipeline, e.g
  • Adjustable: the value for flow control is adjustable and the action repeat point is stable.
  • Application: It is application for water treatment system, central air conditioning, water cooling unit, fire protection system and other areas.
Brand: Hilitand
Color: Default
Manufacturer: Hilitand
Part Number: QFR8J5K
Material Type: Brass + nickel-plated iron + stainless steel + plastic
Isin: I6I1AMPLEVFC

$44.73

$45.01
1% off
  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
1/2 Inch Water Flow Switch HFS-15 Adjustable Thread Connection SPDT Contacts Red Water Flow Control for Water Treatment System, Default

1/2 Inch Water Flow Switch HFS-15 Adjustable Thread Connection SPDT Contacts ...

$44.73 $45.01 (1% off)

Specification:
Material: brass and stainless steel (body), stainless steel (leaf blade), plastic (bowl).
Interface dimensions: 1/2 inch (HFS-15).
Control mode: blade type
Max. Working pressure: 1.0 Mpa.
Ambient temperature: 0 °C ~ 60 °C.
Liquid temperature: -10 ~ 100 °C (not freezing).

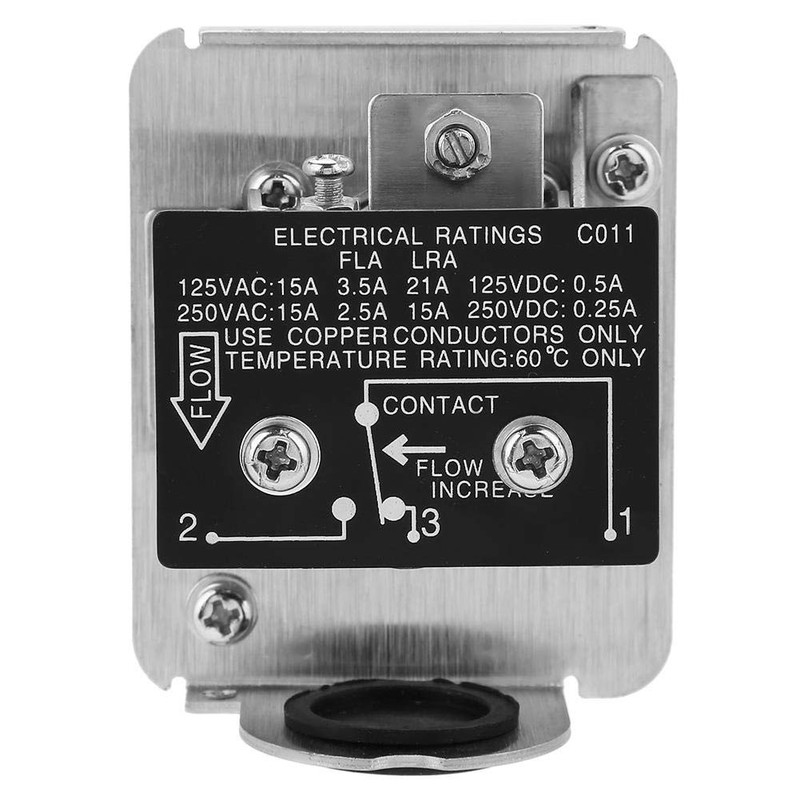

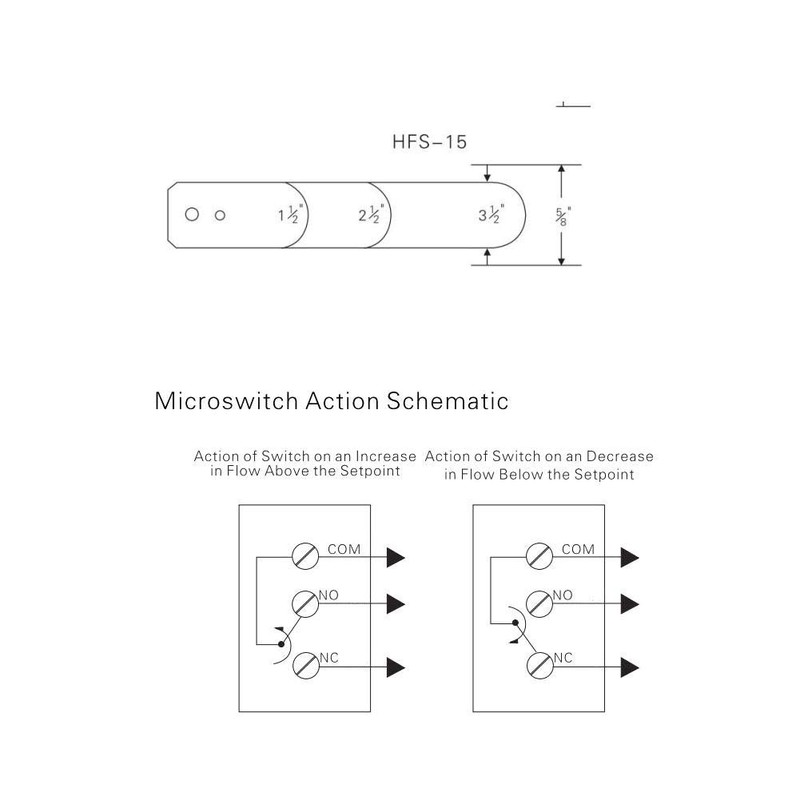

Micro switch: single pole double throw (SPDT).
Contact life: 100,000 cycles

Electrical parameters of the micro switch: 220 VAC, 15 A.
Weight: approx. 407 g.

Package list:
1 x flow switch.
1 x Chinese and English user manual.
3 x paddles.

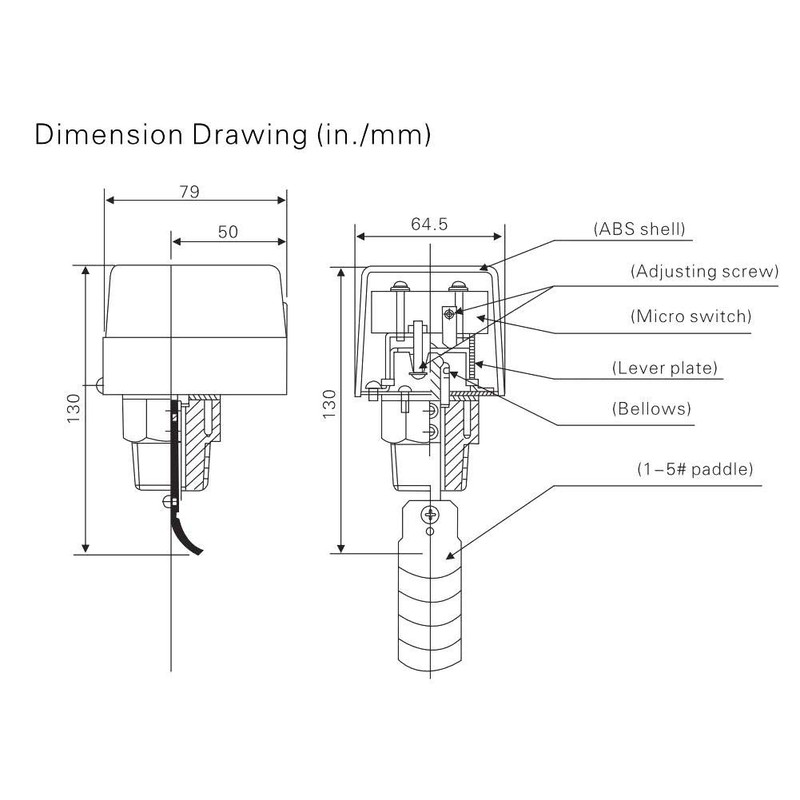

Installation and adjustment:
1. Open the flow switch housing.

2. The switch has been set to the minimum flow value when leaving the factory. Increase the flow value and turn the adjustment screw counterclockwise.
3. Press the target to check whether the micro switch can work normally. Excessive rotation of the adjustment screw clockwise can lead to failure of the flow switch.

4. After installation, press the lever of the flow switch several times to check. If there is no clicking noise when resetting the lever, turn it counterclockwise. Adjust the screws until you hear a click.
5. The adjustment screw of the paint seal is only for factory adjustment of the flow switch. Please do not modify or adjust

6. Note three working cycles, make sure the switch and the associated system are in normal operation, and cover the switch case in time.
