Tacklife Car WIFI OBD2 Tacklife Wireless OBDll Diagnostic Real-Time Scanning Tool - NEW!

Brand: Tacklife

Car WIFI OBD2, Tacklife Wireless OBD2 Diagnostic real-time scanning Tool, Auto Code Scanner, OBD-II Engine Fault Diagnostic Code Tester Adapter Reader for Apple iPhone iPod PC Android iOS Devices



New in box!


Fast and free shipping!!


Thank you!!!



Description:

Why do you need an On Board Diagnostic?Beacause it is able to...

• Read and erase car error codes so as to understand the reasons why your engine error light appears.

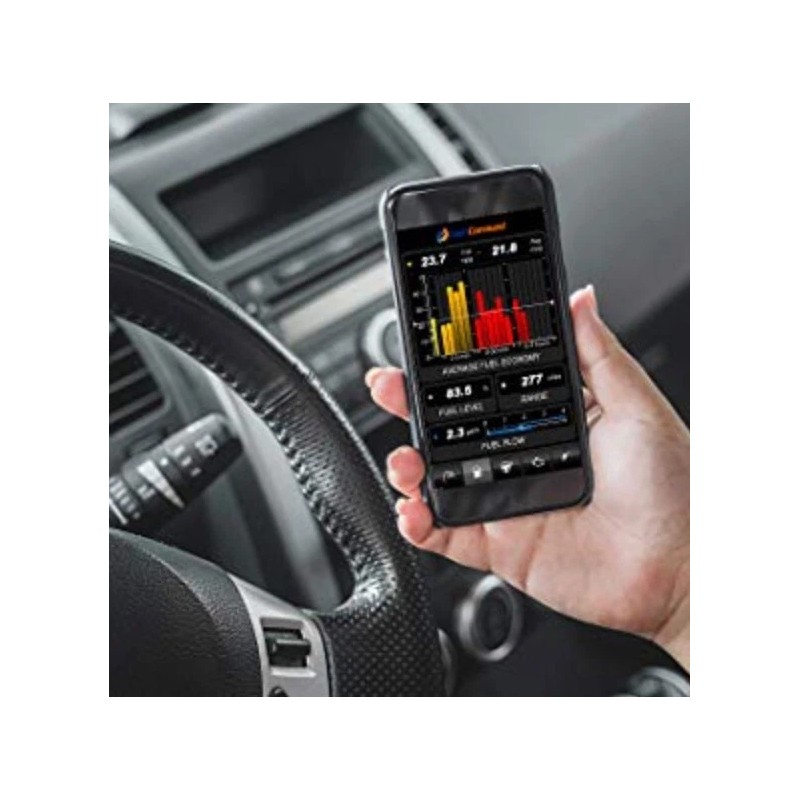

• Scan live data and freeze frame (each parameter when a fault occurs)and display with graph.Engine RPM, Speed,Fuel Pressure, Engine Coolant Temperature, Timing Advance, Throttle Position, Oxygen Sensor, EGR Error, Fuel level, Battery Voltage,EOT, Boost, Fuel Trim, Engine load, Catalyst Temperature,Evap System Vapour Pressure,Accelerator Pedal Position,Air/Fuel Ratio,Body tilt angle,etc.,included.

• View engine’s information. It contains VIN (Vehicle identification number),CIN (Calibration identifications),CVN (calibration verification numbers).

• Check monitor sensor status(I/M) so you can know whether your vehicle can pass the emissions testing.

• Act as your driving reminder(remind you of overspeed,suitable temperature to start,fuel consumption,shift and so forth).

• Show you SKID PAD and other sensor data tracking based on google map.

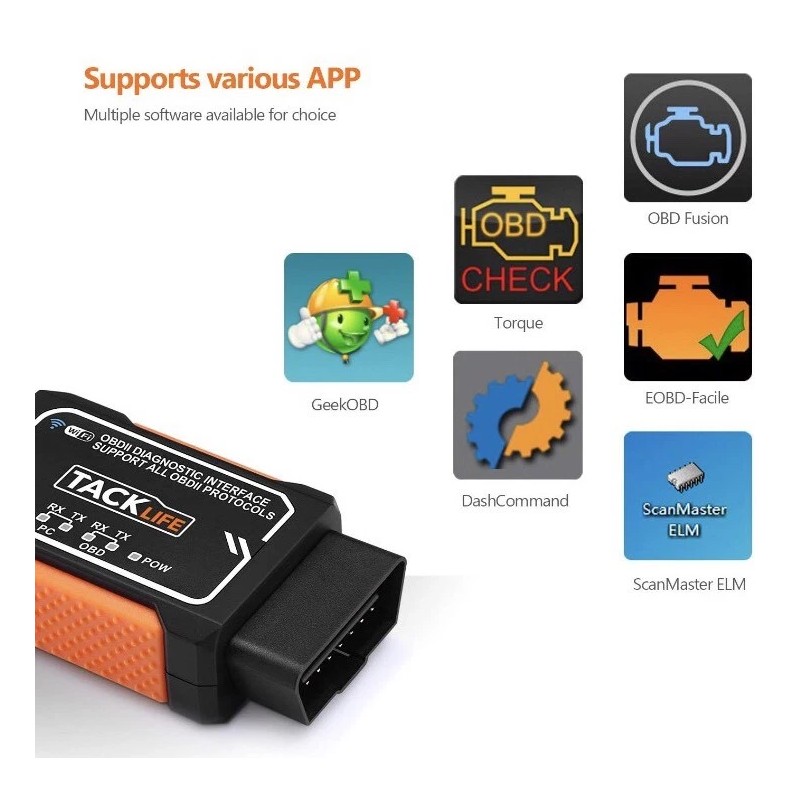

How to choose a proper app?

With different apps, you can easily communicate with your car. The price of these software ranges from $0 to more than $100. In genneral, Those fee applied have more cool user interface and stronger function than free. If you are an ordinary car owners and are not good at auto repair,we will recommend you to download these apps above the paragraph; For a particular car such as Toyota, Ford or Chevrolet you can also download ToyotaSys,FordSys and ChevroSys to scan thier ABS (Anti-lock Braking System), Seat belt and TCM (Transmission Control and ECT). Of course, if you are a senior auto repair technician, we will advise you to dowwnload EOBD-Facile(€29.99-€59.99), ScanMaster-ELM ($49.95) or Pcmscan ($169.95). Here, you are able to get more information on the engine.


For Android,these apps are recommended:

Torque Lite(Free)

OBD Car Doctor(Free)

OBD Auto Doctor(Free)

Scanmaster Lite(Free)

OBD Fusion($3.99)

Torque Pro($4.95)

DashCommand($9.99)

HobDrive($20.99)


For iOS,most apps are paid,and we will advise these apps to meet your needs:

OBD Car Doctor(Free)

OBD Auto Doctor(Free)

OBD2 Scanner($4.99)

Engine Link($5.99)

OBD Fusion($9.99)

DashCommand($9.99)

EOBD Facile(pay in app)


Why do you choose Tacklife?

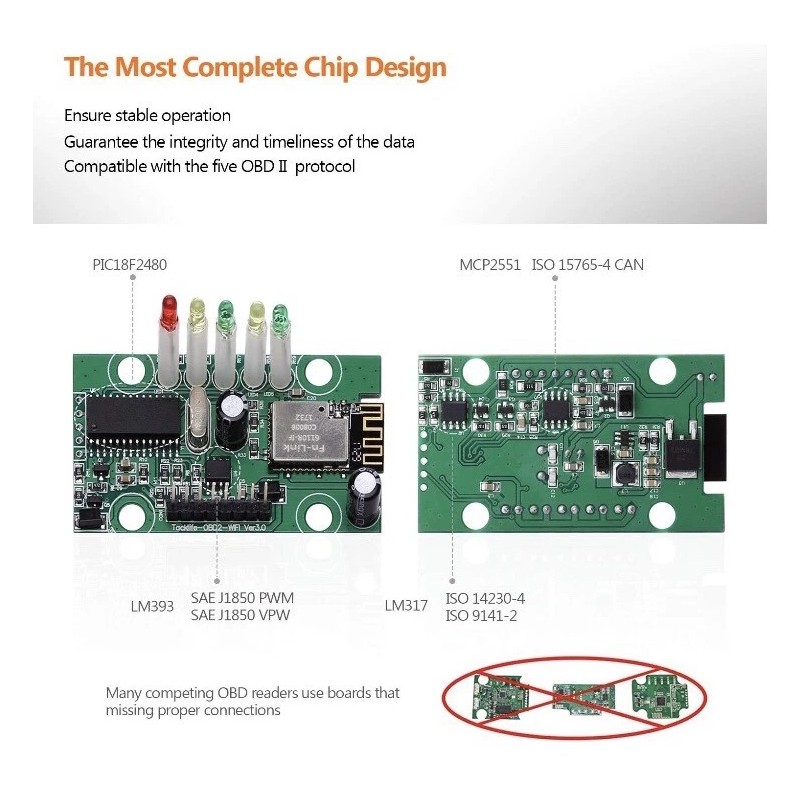

※Unlike other cheap ones which adopt cloned chip called”V2.1”,which removes the chip LM339 and must lose connection on J1850 VPW,J1850 VPN,and J1850 PWM(mainly apply to many early cars,such as Ford before 2006,GM before 2008,Cadillac and Chevrolet before 2005,and other old Buick,Chrysler,Dodge,Isuzu,Lincoln,Mazda cars.)Some of “bad” clones can’t even connect to Nissan/Infinity/Datsun vehicles.However,we adopt ELM327 chip V1.5 of Microchip Technology in the U.S,supporting 9 complete OBD‖protocols.


※Excellent product quality.Tacklife diagnostic scanner adoptss scientific circuit configuration and is made with STM process.At the same time,we set a reliable protector ‘’CS78M05’’to protect your car from high voltage.Moreover,Our tester can work continusly for several months.


※Chic industrial designs.The scanner sets a non-slip rubber and modified interface.It not only looks stylish and beautiful, but also feels soft. Even competitors are amazed at our product.


FAQ:

1.Will it work on my vehicle if it is imported?

The scanner can also work with following 12V light trucks:EU(gas):2001 to now,EU(Diesel):2004 to now;South Korea:2005-2010 onwards;Japan:2002-2010 onwards.


2.Why can’t my phone connect to the car’s ECU?

First of all, please make sure that your car is within the compatible range. Second, ensure that the engine is in open state during using it. Third, don't forget to set ’’Tacklife-OBD2-WiFi’’as the correct adapter within the software(for instance,in the software Torque Lite, you should click Settings/OBD2 Adapter Settings/Connection/WiFi).Fourth,please close other app temporarily when it is connecting.Fifth,close and restart your software and car’s engine. Sixth,try it on another new vehicle to know whether the socket of your car goes wrong.


3.What should I do after knowing the error codes?

You can look up related books(For example,”HOW TO USE AUTOMOTIVE DIAGNOSTIC SCANNERS”)and websites(just search “repairpal OBD codes” on google), ask auto repair engineers, or download related apps to know more(Eg. “OBD2 Code Guide”(free),”OBD Car Diag Bluetooth”(fee applied but recommended),“AutoCodes”(free and with pictures) or “OBDII Trouble Codes Lite” on Google Play).Note:If you are not a professional repairman, do not repair your vehicle blindly.


4.What is the differience among ELM327 v1.0,v1.0a,v1.1,...,v2.0,v2.1and v2.2?

Since 2006,ELM327 v1.0 comes out and supports 51 AT commands. For more than a decade, after eleven updates, ELM327 has been updated to v2.2 and the number becomes 132.So sorry to tell you that many people bought a cloned version of the ELM327 device due to some misleading sellers. Because genuine ELM327 has been adopting a stable and reliable PIC18F2480 chip, and never used “PIC18F25K80”, “TL718”, “STM32” or “STN1111”.


5.Do I need to pull the plug out of my car?

The power of this code reader is 0.7W(0.45W while not working),and the car's battery is generally 40 to 60A(12V).It can be used for more than 35 days(40Ah*12V*80%/(0.45W*24h/day).Therefore,please remove the scanner if your car is shelved for more than half a month in case that your car becomes low power.


6.Will the scanner read ABS(Anti-lock Braking System)/SRS(Safety Airbag)/TPMS(Tire Pressure Monitoring System) or VSC(Vehicle Stability Control)codes?

OBD2 is primarily designed for engine diagnostics system and is the same worldwide. However,the way to communicate data about ABS,SRS,PMS and VSC completely depends on each manufacturers and is usually different,so is the encryption degree.Therefore, it is impossible to make a software to read all systems of all brands at the same time.However, several software can read several systems such as ABS, SRS, TCM.For example: Ford, Chevrolet and Toyota.If you want to read the data of these systems, please select the detection tools of specific vehicles.


7.What does the OBD protocols contain?Which does Tacklife scanner support?

OBDⅡ contains 9 protocols:

ⅠSAE J1850 PWM(41.6Kbaud)

ⅡSAE J1850 VPW(10.4Kbaud)

ⅢISO9141-2(5 baud init,10.4Kbaud)

ⅣISO14230-4 KWP(5 baud init,10.4 Kbaud)

ⅤISO14230-4 KWP(fast init,10.4 Kbaud)

ⅥISO15765-4 CAN(11bit ID,500 Kbaud)

ⅦISO15765-4 CAN(29bit ID,500 Kbaud)

ⅧISO15765-4 CAN(11bit ID,250 Kbaud)

ⅨISO15765-4 CAN(29bit ID,250 Kbaud)

Tacklife dignostic scanner can not only support all the above protocols,but can communicate with your vehicle if it adopts SAE J1939 CAN (29bit ID,250*Kbaud,12V) .

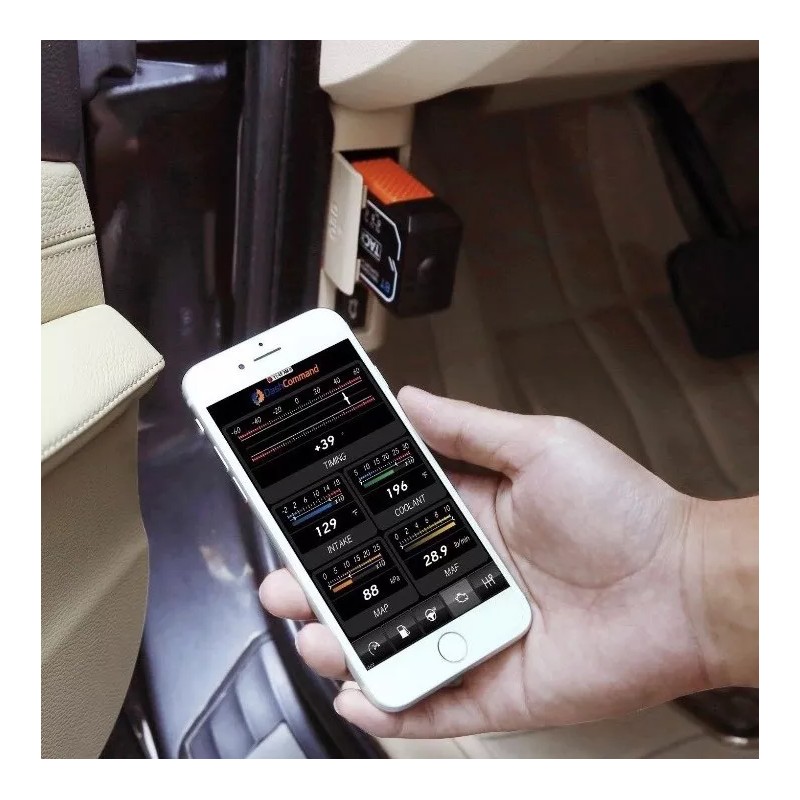

Where is the OBD socket?

The diagnostic socket is usually found under the dashboard,near the center console or in front of the vice driving position.Just uncover the lid,and you'll see the words of OBD‖,which indicates your car is compliant.


Will the code scan tool work with my car?

You can browse whether your car is within the compliant range easily by click the above QR code,and there are more than 9000 vehicles that is OBD2 compliant.If your car is not in, please get in touch with us.


Note!

1.Our AOBD1W code reader can work with an Android,iOS&Windows Phone,laptop or PC,please do not worry that it cannot work with your smart phone.Otherwise,its IP is 192.168.0.10,and the port is 35000 bps.Do not change them please,or you won’t be able to connect your phone to your cars.

2,Erasing the code does not mean the fault have been solved, please repair it in time.

3, Please remove the scanner if your car is shelved for more than half a month.

4,The scanner can support all 12V gasoline and diesel cars sold in the U.S since 1996,including cars,SUVs,pickup trucks,minivans and other light trucks(<14000 pounds )but maybe do not support 24V or heavy truck(>26000 pounds ),most hybrid or electric vehicles.

5,Not all vehicles support clearing every error code light,because some vehicle manufacturers do not allow to access to certain data.

Brand: Tacklife
Isin: ILVNKPNV2UMO

$86.96

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled By IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Tacklife Car WIFI OBD2 Tacklife Wireless OBDll Diagnostic Real-Time Scanning Tool - NEW!

Tacklife Car WIFI OBD2 Tacklife Wireless OBDll Diagnostic Real-Time Scanning ...

$86.96

Car WIFI OBD2, Tacklife Wireless OBD2 Diagnostic real-time scanning Tool, Auto Code Scanner, OBD-II Engine Fault Diagnostic Code Tester Adapter Reader for Apple iPhone iPod PC Android iOS Devices



New in box!


Fast and free shipping!!


Thank you!!!



Description:

Why do you need an On Board Diagnostic?Beacause it is able to...

• Read and erase car error codes so as to understand the reasons why your engine error light appears.

• Scan live data and freeze frame (each parameter when a fault occurs)and display with graph.Engine RPM, Speed,Fuel Pressure, Engine Coolant Temperature, Timing Advance, Throttle Position, Oxygen Sensor, EGR Error, Fuel level, Battery Voltage,EOT, Boost, Fuel Trim, Engine load, Catalyst Temperature,Evap System Vapour Pressure,Accelerator Pedal Position,Air/Fuel Ratio,Body tilt angle,etc.,included.

• View engine’s information. It contains VIN (Vehicle identification number),CIN (Calibration identifications),CVN (calibration verification numbers).

• Check monitor sensor status(I/M) so you can know whether your vehicle can pass the emissions testing.

• Act as your driving reminder(remind you of overspeed,suitable temperature to start,fuel consumption,shift and so forth).

• Show you SKID PAD and other sensor data tracking based on google map.


How to choose a proper app?

With different apps, you can easily communicate with your car. The price of these software ranges from $0 to more than $100. In genneral, Those fee applied have more cool user interface and stronger function than free. If you are an ordinary car owners and are not good at auto repair,we will recommend you to download these apps above the paragraph; For a particular car such as Toyota, Ford or Chevrolet you can also download ToyotaSys,FordSys and ChevroSys to scan thier ABS (Anti-lock Braking System), Seat belt and TCM (Transmission Control and ECT). Of course, if you are a senior auto repair technician, we will advise you to dowwnload EOBD-Facile(€29.99-€59.99), ScanMaster-ELM ($49.95) or Pcmscan ($169.95). Here, you are able to get more information on the engine.


For Android,these apps are recommended:

Torque Lite(Free)

OBD Car Doctor(Free)

OBD Auto Doctor(Free)

Scanmaster Lite(Free)

OBD Fusion($3.99)

Torque Pro($4.95)

DashCommand($9.99)

HobDrive($20.99)


For iOS,most apps are paid,and we will advise these apps to meet your needs:

OBD Car Doctor(Free)

OBD Auto Doctor(Free)

OBD2 Scanner($4.99)

Engine Link($5.99)

OBD Fusion($9.99)

DashCommand($9.99)

EOBD Facile(pay in app)


Why do you choose Tacklife?

※Unlike other cheap ones which adopt cloned chip called”V2.1”,which removes the chip LM339 and must lose connection on J1850 VPW,J1850 VPN,and J1850 PWM(mainly apply to many early cars,such as Ford before 2006,GM before 2008,Cadillac and Chevrolet before 2005,and other old Buick,Chrysler,Dodge,Isuzu,Lincoln,Mazda cars.)Some of “bad” clones can’t even connect to Nissan/Infinity/Datsun vehicles.However,we adopt ELM327 chip V1.5 of Microchip Technology in the U.S,supporting 9 complete OBD‖protocols.


※Excellent product quality.Tacklife diagnostic scanner adoptss scientific circuit configuration and is made with STM process.At the same time,we set a reliable protector ‘’CS78M05’’to protect your car from high voltage.Moreover,Our tester can work continusly for several months.


※Chic industrial designs.The scanner sets a non-slip rubber and modified interface.It not only looks stylish and beautiful, but also feels soft. Even competitors are amazed at our product.


FAQ:

1.Will it work on my vehicle if it is imported?

The scanner can also work with following 12V light trucks:EU(gas):2001 to now,EU(Diesel):2004 to now;South Korea:2005-2010 onwards;Japan:2002-2010 onwards.


2.Why can’t my phone connect to the car’s ECU?

First of all, please make sure that your car is within the compatible range. Second, ensure that the engine is in open state during using it. Third, don't forget to set ’’Tacklife-OBD2-WiFi’’as the correct adapter within the software(for instance,in the software Torque Lite, you should click Settings/OBD2 Adapter Settings/Connection/WiFi).Fourth,please close other app temporarily when it is connecting.Fifth,close and restart your software and car’s engine. Sixth,try it on another new vehicle to know whether the socket of your car goes wrong.


3.What should I do after knowing the error codes?

You can look up related books(For example,”HOW TO USE AUTOMOTIVE DIAGNOSTIC SCANNERS”)and websites(just search “repairpal OBD codes” on google), ask auto repair engineers, or download related apps to know more(Eg. “OBD2 Code Guide”(free),”OBD Car Diag Bluetooth”(fee applied but recommended),“AutoCodes”(free and with pictures) or “OBDII Trouble Codes Lite” on Google Play).Note:If you are not a professional repairman, do not repair your vehicle blindly.


4.What is the differience among ELM327 v1.0,v1.0a,v1.1,...,v2.0,v2.1and v2.2?

Since 2006,ELM327 v1.0 comes out and supports 51 AT commands. For more than a decade, after eleven updates, ELM327 has been updated to v2.2 and the number becomes 132.So sorry to tell you that many people bought a cloned version of the ELM327 device due to some misleading sellers. Because genuine ELM327 has been adopting a stable and reliable PIC18F2480 chip, and never used “PIC18F25K80”, “TL718”, “STM32” or “STN1111”.


5.Do I need to pull the plug out of my car?

The power of this code reader is 0.7W(0.45W while not working),and the car's battery is generally 40 to 60A(12V).It can be used for more than 35 days(40Ah*12V*80%/(0.45W*24h/day).Therefore,please remove the scanner if your car is shelved for more than half a month in case that your car becomes low power.


6.Will the scanner read ABS(Anti-lock Braking System)/SRS(Safety Airbag)/TPMS(Tire Pressure Monitoring System) or VSC(Vehicle Stability Control)codes?

OBD2 is primarily designed for engine diagnostics system and is the same worldwide. However,the way to communicate data about ABS,SRS,PMS and VSC completely depends on each manufacturers and is usually different,so is the encryption degree.Therefore, it is impossible to make a software to read all systems of all brands at the same time.However, several software can read several systems such as ABS, SRS, TCM.For example: Ford, Chevrolet and Toyota.If you want to read the data of these systems, please select the detection tools of specific vehicles.


7.What does the OBD protocols contain?Which does Tacklife scanner support?

OBDⅡ contains 9 protocols:

ⅠSAE J1850 PWM(41.6Kbaud)

ⅡSAE J1850 VPW(10.4Kbaud)

ⅢISO9141-2(5 baud init,10.4Kbaud)

ⅣISO14230-4 KWP(5 baud init,10.4 Kbaud)

ⅤISO14230-4 KWP(fast init,10.4 Kbaud)

ⅥISO15765-4 CAN(11bit ID,500 Kbaud)

ⅦISO15765-4 CAN(29bit ID,500 Kbaud)

ⅧISO15765-4 CAN(11bit ID,250 Kbaud)

ⅨISO15765-4 CAN(29bit ID,250 Kbaud)

Tacklife dignostic scanner can not only support all the above protocols,but can communicate with your vehicle if it adopts SAE J1939 CAN (29bit ID,250*Kbaud,12V) .


Where is the OBD socket?

The diagnostic socket is usually found under the dashboard,near the center console or in front of the vice driving position.Just uncover the lid,and you'll see the words of OBD‖,which indicates your car is compliant.


Will the code scan tool work with my car?

You can browse whether your car is within the compliant range easily by click the above QR code,and there are more than 9000 vehicles that is OBD2 compliant.If your car is not in, please get in touch with us.


Note!

1.Our AOBD1W code reader can work with an Android,iOS&Windows Phone,laptop or PC,please do not worry that it cannot work with your smart phone.Otherwise,its IP is 192.168.0.10,and the port is 35000 bps.Do not change them please,or you won’t be able to connect your phone to your cars.

2,Erasing the code does not mean the fault have been solved, please repair it in time.

3, Please remove the scanner if your car is shelved for more than half a month.

4,The scanner can support all 12V gasoline and diesel cars sold in the U.S since 1996,including cars,SUVs,pickup trucks,minivans and other light trucks(<14000 pounds )but maybe do not support 24V or heavy truck(>26000 pounds ),most hybrid or electric vehicles.

5,Not all vehicles support clearing every error code light,because some vehicle manufacturers do not allow to access to certain data.

  • Wifi Standard: 802.11a/b/g
  • Brand: Tacklife
  • Interchange Part Number: Does Not Apply
  • IP: 192.168.0.10
  • Manufacturer Part Number: Does Not Apply
  • Surface Finish: ELM 327 Wifi OBDII Scanner Tool
  • Superseded Part Number: Supports all OBD-II Protocols (ISO15765-4 (CAN)
  • Vintage Part: No
  • Universal Fitment: Yes
  • Placement on Vehicle: Left, Right, Front, Rear
  • Performance Part: Yes
  • UPC: Not Applicable
