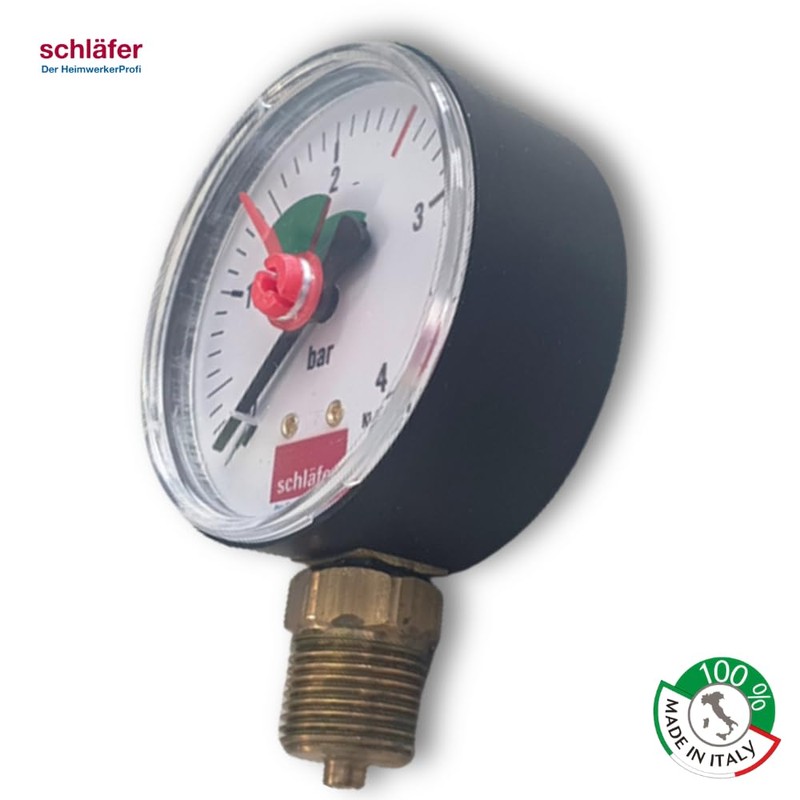

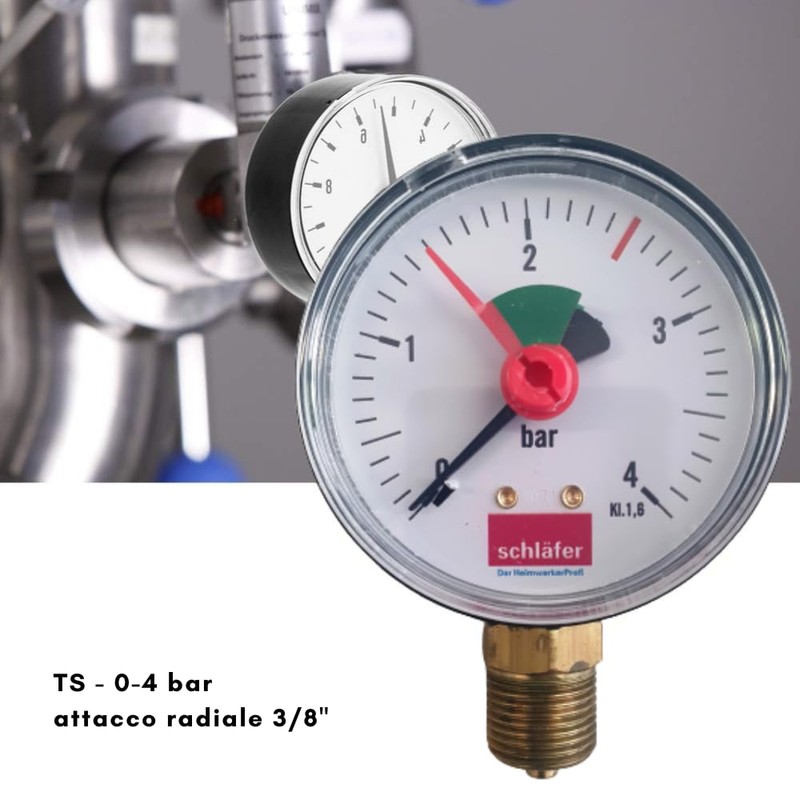

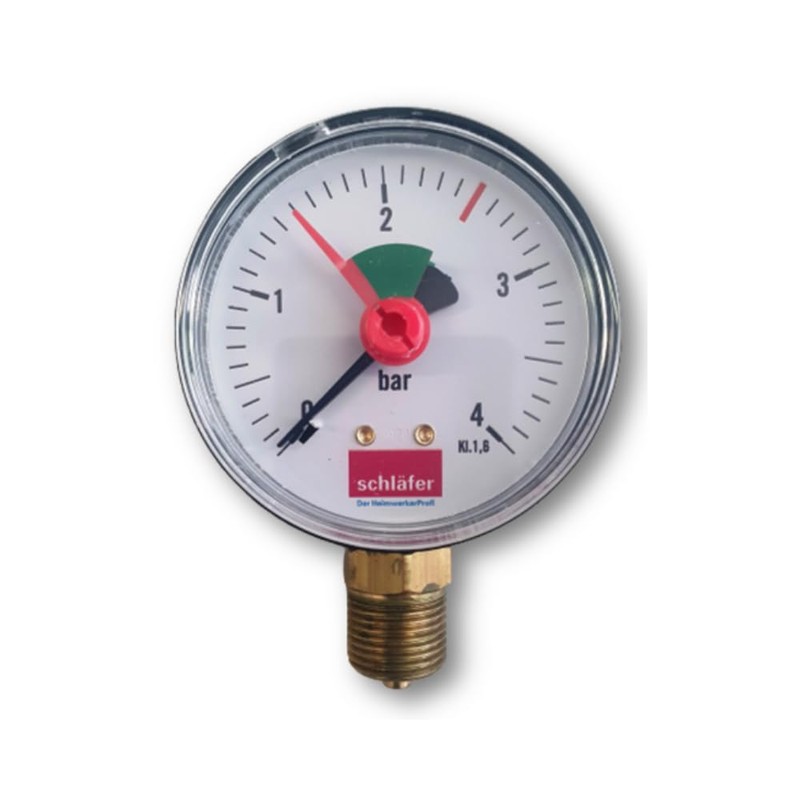

Schläfer 0930161 | Vertical Hydraulic Pressure Gauge Radial Connection 3/8 Inch Scale 0-4 Bar 63 mm for Air-Water Heating Systems Hydraulic Pressure Indicator

Brand: Schläfer
  • MULTIPURPOSE PRESSURE GAUGE This general purpose pressure gauge has a wide application in daily life, it can be widely used to measure air, water, oil, gas and other things, an ideal pressure gauge with stable performance
  • Premium quality material: accuracy class: 1.6% - This pressure gauge is made of high quality material to ensure long-term service, the chrome steel bezel provides good durability and wear resistance, and the circular dial is in a metal case to avoid corrosion
  • Easy installation: this NPT pressure gauge is equipped with connector: G3/8" brass -NPT threaded connection for easy installation and the gauge-touched parts for measuring non-corrosive liquid and gas pressure
  • Readable & Portable Design This pneumatic pressure gauge adopts with a black long meter hand on white background with clear number markings, which makes it easy for quick readings. And this hydraulic pressure gauge is designed with a mini size for easy and convenient carrying
  • Stable performance: tube spring pressure gauge according to EN 837-1 – size: Ø63 mm – measuring range 0 ~ 4 bar, connection: G3/8 inch brass – housing: steel, black lacquered. Areas of application: measurement of the negative and positive pressure of liquid and gaseous media (do not attack Ms/Cu alloys), e.g. for hydraulic or pneumatic applications
Brand: Schläfer
Manufacturer: Schläfer
Part Number: 7502WBI
Material Type: Plastic
Isin: IEEUYGDPN78X

$70.19

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled By IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Schläfer 0930161 | Vertical Hydraulic Pressure Gauge Radial Connection 3/8 Inch Scale 0-4 Bar 63 mm for Air-Water Heating Systems Hydraulic Pressure Indicator

Schläfer 0930161 | Vertical Hydraulic Pressure Gauge Radial Connection 3/8 In...

$70.19

Schläfer Der HeimwerkerProfi - 0930161 | Hydraulic Pressure Gauge

Industrial pressure gauge for hydraulic pressure, heating systems 0-10 bar, diameter 63 mm, axial connection, rear 1/4 inch. DN63 plastic dry housing, pressure gauge for heating and sanitary systems https://www.ismeshop.it/wp-content/uploads/2022/01/ALL-PRODUCTS.jpgei for gaseous and liquid liquids. Suitable for industrial, pneumatic, agricultural, pump, plant construction, thermohydraulic sector, solar systems, generators. For non-corrosive liquids that are compatible with copper alloys and temperatures from -40 to +180°C. Application: industry, pneumatics, agriculture, pumps, plant construction, thermohydraulic sector, solar systems, steam generators. Product 100% made in Italy

Product features:

  • Type: pressure gauge.
  • Material: plastic housing.
  • Black

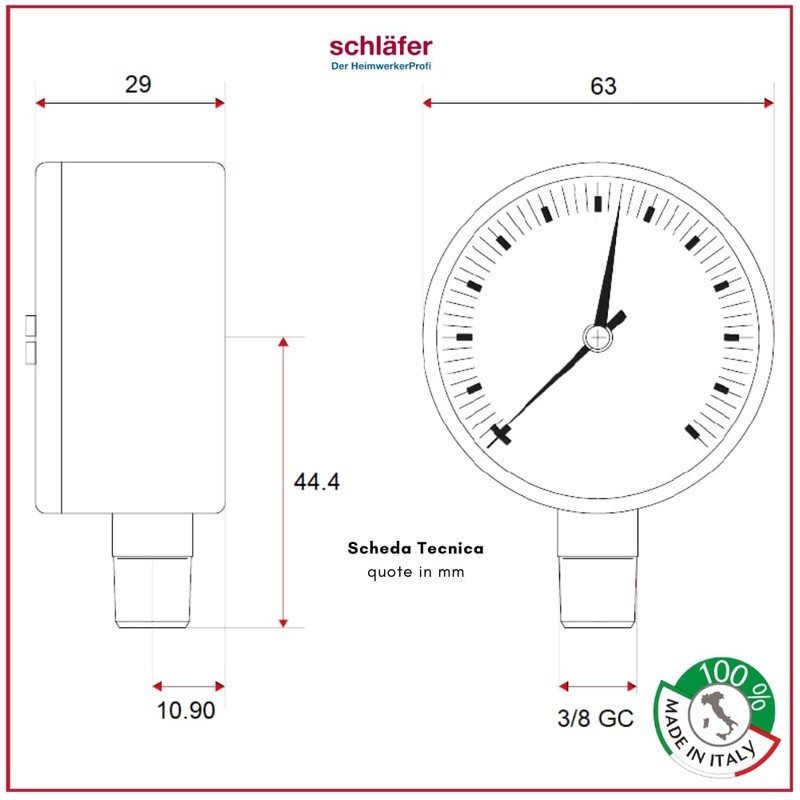

  • Dimensions: diameter 63 mm.

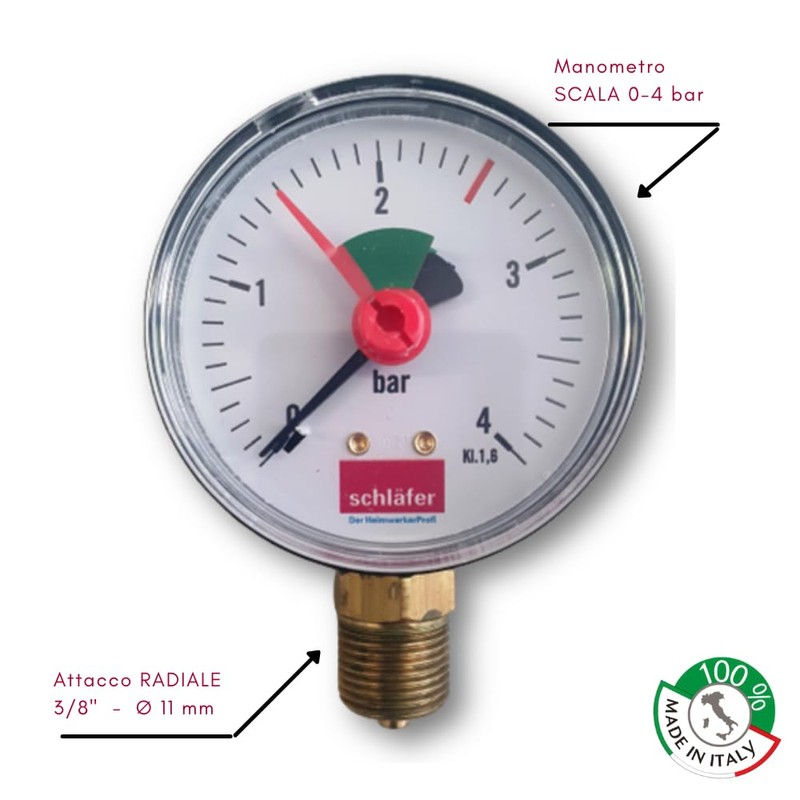

  • Connection: radial drive, vertical 3/8 inch.
  • Sensor element: TOMBAC Cu85/Zn15 tube spring "C" pipe spring made Italiana.

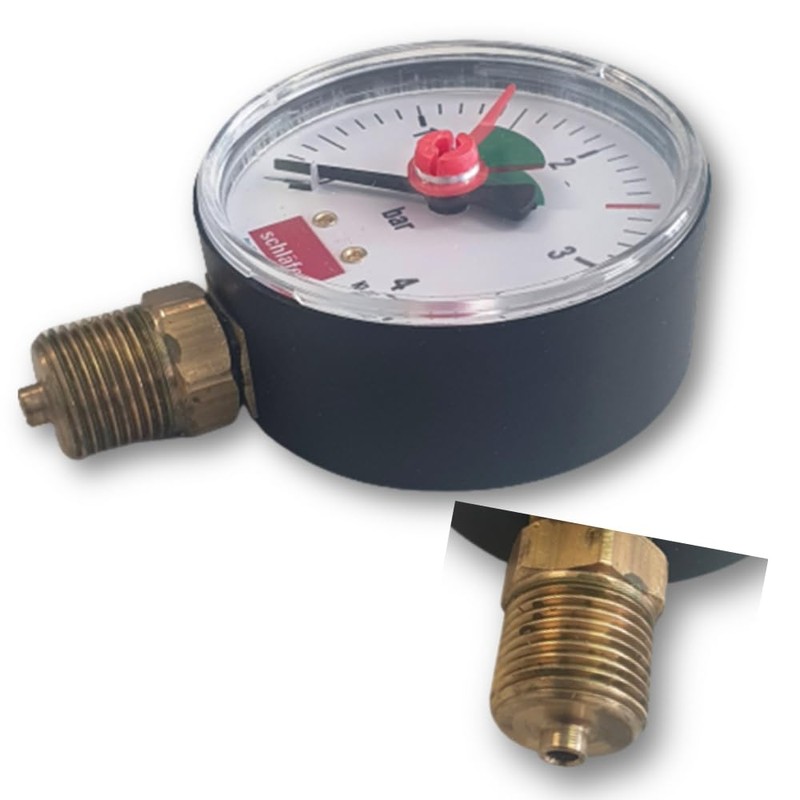

  • Pin: brass OT 58 male thread.
  • Dial: aluminium.
  • Colour: white.
  • Scale: bar - scale ranges 0-4 bar.
  • Transparent: Plexiglas (PMMA).
  • Finish: Glossy
  • Welding: Sn97 / Cu3 alloy.
  • Overpressure: 25% of the final value.
  • Operating pressure: up to 3/4 of the end impact for constant pressures - 2/3 of the end impact for variable pressures.
  • Calibration: single, class on the full scale (according to UNI standards) class 1.6 to DN 63.

IN THE BOX

  • x1 vertical hydraulic pressure gauge 3/8 inch radial connection 0-4 bar scale of 63.
