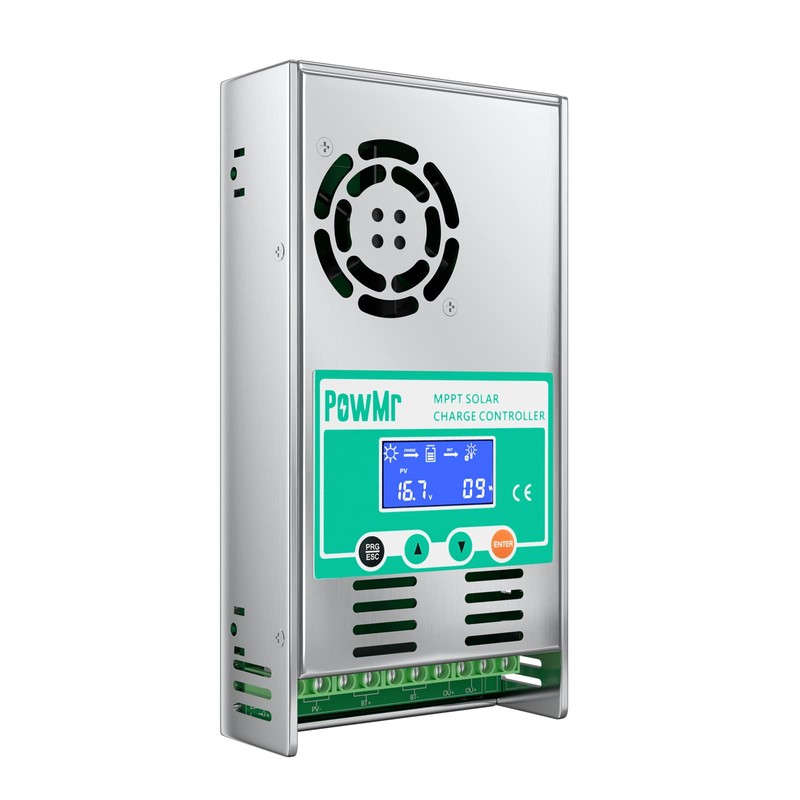

PowMr MPPT Solar Charge Controller 60 amp 48V 36V 24V 12V Auto - Max 160VDC Input, LCD Backlight Solar Charge Controller for Vented Sealed Gel NiCd Lithium Battery【Software Update Version】
PowMr MPPT Solar Charge Controller 60 amp 48V 36V 24V 12V Auto - Max 160VDC Input, LCD Backlight Solar Charge Controller for Vented Sealed Gel NiCd Lithium Battery【Software Update Version】
PowMr MPPT Solar Charge Controller 60 amp 48V 36V 24V 12V Auto - Max 160VDC Input, LCD Backlight Solar Charge Controller for Vented Sealed Gel NiCd Lithium Battery【Software Update Version】
- ❶【Software Update MPPT Design 】100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries' voltage more than 12V to boost controller and make sure battery has enough power to Self-detection when connected to the controller.
- ❷【Multiple Battery Adaptation】 Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG.

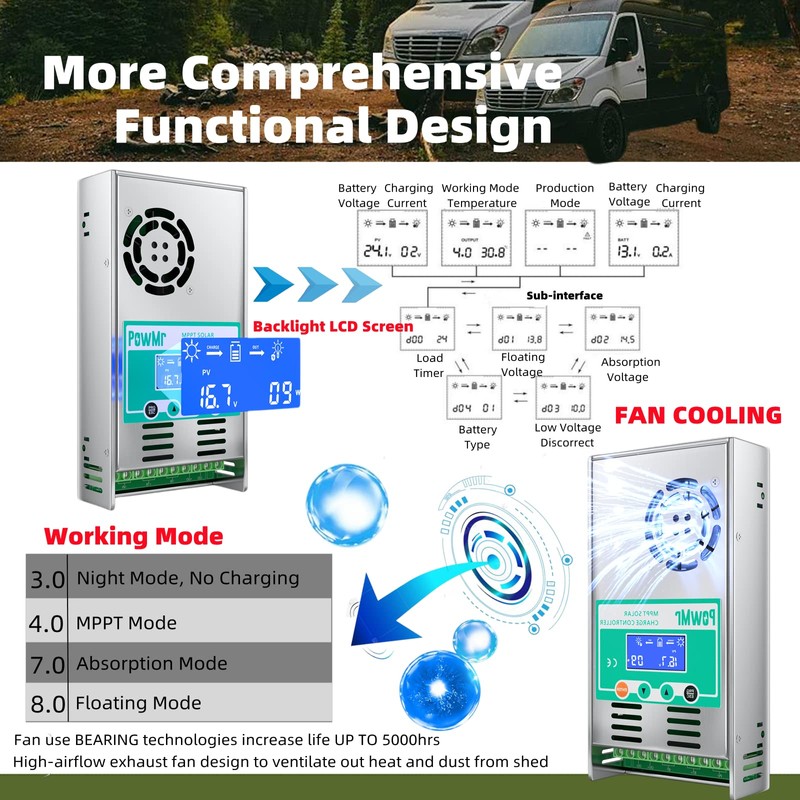

- ❸【Full System Protection】Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.
- ❹【Fan Heat Dissipation】Intelligence Fan-on temperature >45℃ and off < 40℃,Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use. Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.
- ❺【Notiction】If you use sealed lead acid, vented gel battery, and etc, you donn't need to set any parameters, the controller can adjuste automaticly and work normally; but if you use lithium batteries, you need to properly adjuste parameters according to the actual voltage of the battery, becauese the voltage of lithium batteries is unstable, such as acid battery 12V is 12V, lithium battery 12V may be 11.1V or 14.8V.
| Brand: | PowMr |
|---|---|
| Size: | mppt charge controller 60 amp |
| Color: | 60A MPPT 48V 36V 24V 12V |
| Manufacturer: | PowMr |
| Part Number: | 19PGGBS |
| Product Dimensions: | 2.87 x 8.11 x 9.92 inches; 2.95 pounds |
| Isin: | IZBB7PGRLSIP |
This product is not available in the selected country
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
MPPT-60A
Tips The load output is only for DC load less 5A current.
Warming tips:Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 times of Battery voltage will be the best efficiency.
Pay attention to if your battery capacity is very small,we need to give the battery a little reaction time when input voltage has a great change
Feature:

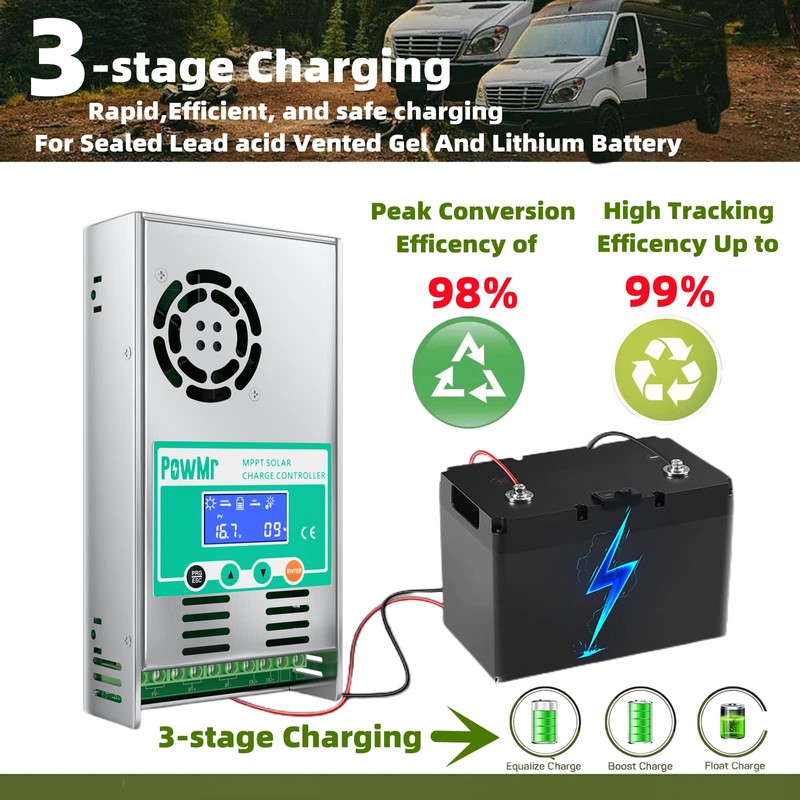

Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
Selectable battery type Vented/ Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user)
Soft start time ≤1S
Dynamic response and recovery time 100us
Max efficiency ≥98.1%
PV utilization ≥99%
In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals

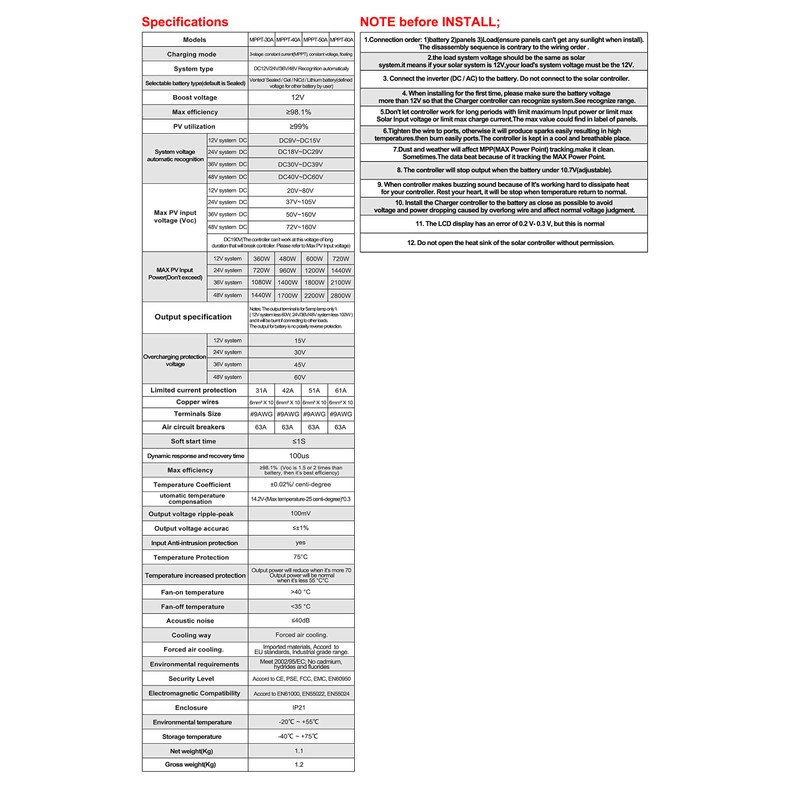

Input specification:
12V system: DC20V~DC80V
24V system: DC37V~DC105V
36V system: DC50V~DC160V
48V system: DC72V~DC160V
The maximum PV input voltage (Voc):DC190V
(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)

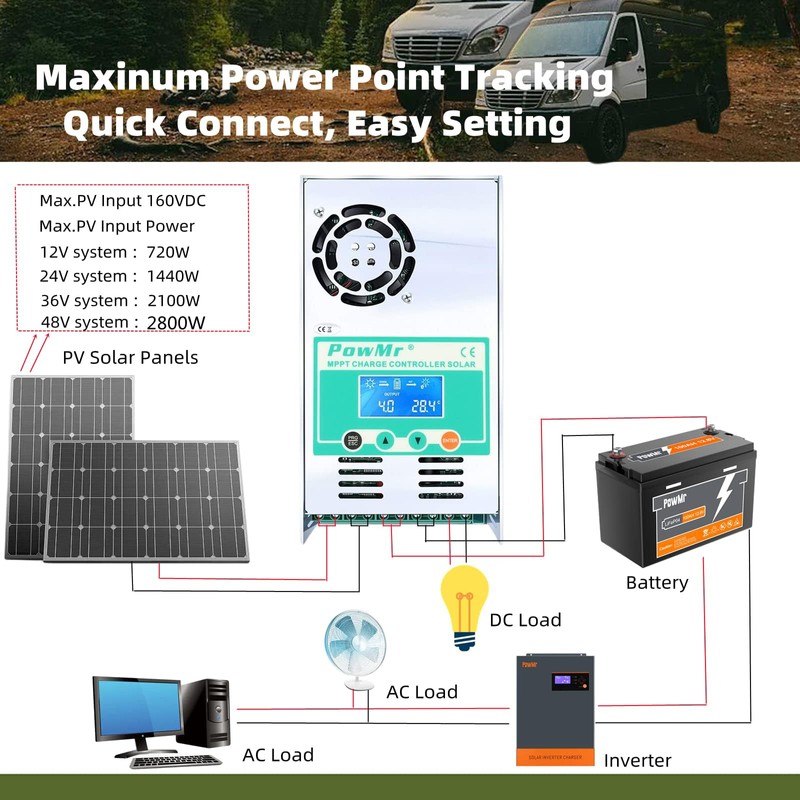

The maximum PV input power
(The total power rated of PV can’t be over this watt that will break the controller.)
12V system (720W) ;
24V system (1440W) ;
36V system (2100W);
48V system (2800W) ;
Output specification
Overcharging protection voltage:
12V system (15V);
24V system (30V);
36V system (45V);
48V system (60V);
Air circuit breaker and wires requirement
copper wires:9AWG
air circuit:100A
Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
Package including:
1XMPPT Solar Charge Controller
1XEnglish Manual
Tips The load output is only for DC load less 5A current.
Warming tips:Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 times of Battery voltage will be the best efficiency.
Pay attention to if your battery capacity is very small,we need to give the battery a little reaction time when input voltage has a great change
Feature:
Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
Selectable battery type Vented/ Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user)
Soft start time ≤1S
Dynamic response and recovery time 100us
Max efficiency ≥98.1%
PV utilization ≥99%
In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals
Input specification:
12V system: DC20V~DC80V
24V system: DC37V~DC105V
36V system: DC50V~DC160V
48V system: DC72V~DC160V
The maximum PV input voltage (Voc):DC190V
(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)
The maximum PV input power
(The total power rated of PV can’t be over this watt that will break the controller.)
12V system (720W) ;
24V system (1440W) ;
36V system (2100W);
48V system (2800W) ;
Output specification
Overcharging protection voltage:
12V system (15V);
24V system (30V);
36V system (45V);
48V system (60V);
Air circuit breaker and wires requirement
copper wires:9AWG
air circuit:100A
Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.
Package including:
1XMPPT Solar Charge Controller
1XEnglish Manual
